HNT205 Trailing Edge Microwave Motion Sensor 220-240VAC 12m Detection

  • 1
  • 2
  • 3

Brand Name : Hynall

Model Number : HNT205

Certification : CE, RED, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 20,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 220~240V / 90~120V

Protections : Over load & over-heat protection

Usage : trailing edge

Product name : high frequency motion sensor

IP rating : IP20

Size : 102*45*26.5mm

Contact Now

220-240V AC HNT205 microwave motion sensor special design for trailing edge

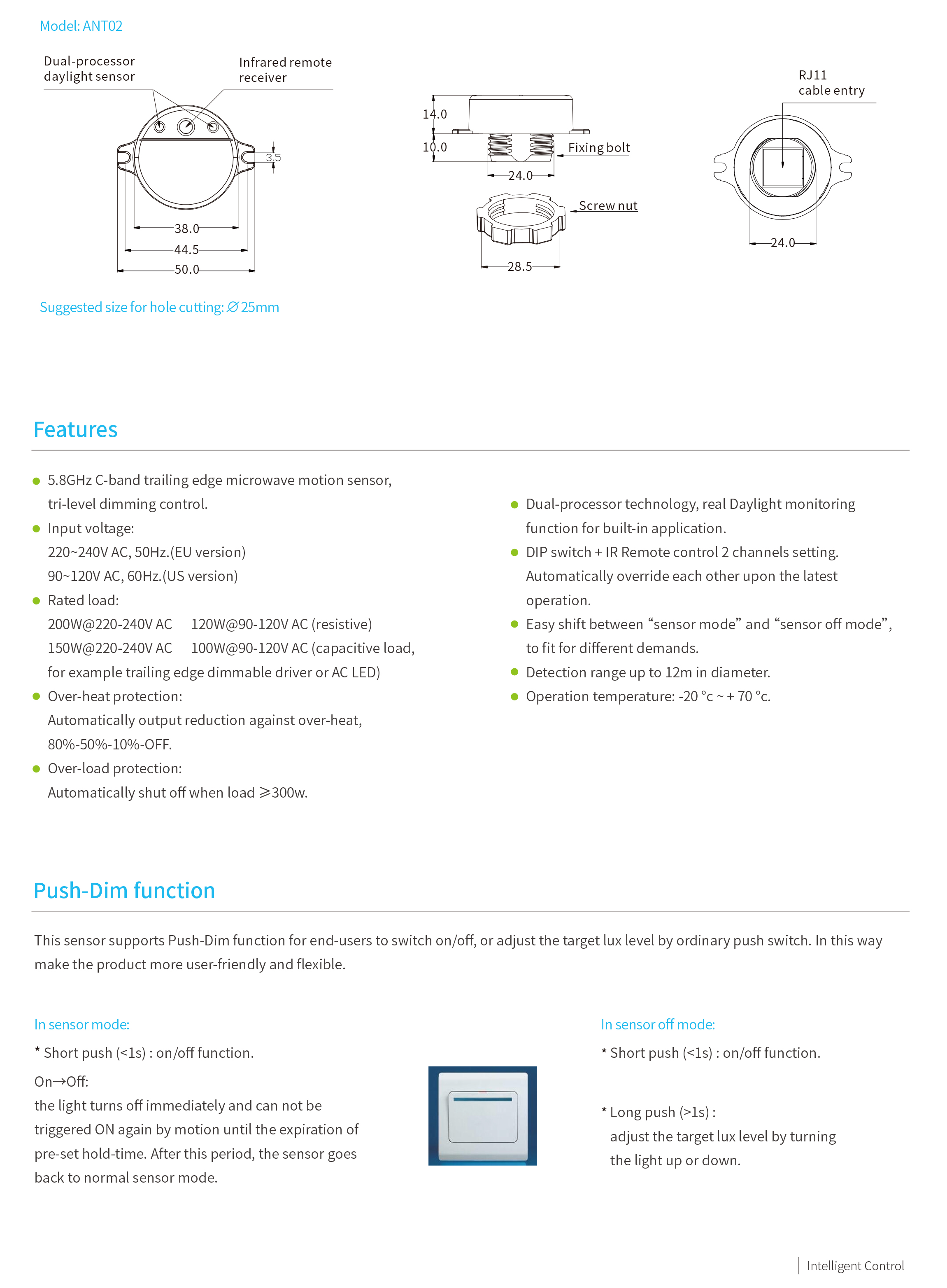

Features:

1. Input voltage: 220〜240V AC, 90-120V AC 50/60Hz
2. Rated load:

200W (resistive)

150W (capacitive load)
3. Stand-by power: <1w
4. Over-heat protection: Automatically output reduction against over-heat, 80%-50%-10%-OFF
5. Over-load protection: shut off when load ≥300w automatically
6. Detection range: Max. 12m in diameter
7. Mounting height: 3~6m
8. Operation temperature: -20℃~ + 70℃
9. Color: White

HNT205 Trailing Edge Microwave Motion Sensor 220-240VAC 12m DetectionHNT205 Trailing Edge Microwave Motion Sensor 220-240VAC 12m DetectionHNT205 Trailing Edge Microwave Motion Sensor 220-240VAC 12m DetectionHNT205 Trailing Edge Microwave Motion Sensor 220-240VAC 12m DetectionHNT205 Trailing Edge Microwave Motion Sensor 220-240VAC 12m DetectionHNT205 Trailing Edge Microwave Motion Sensor 220-240VAC 12m Detection

Power Dim +/-


Press “Power Dim +” button to dim up the power step by step 20% -40%-60%-80%-100%. Press “Power Dim -”
button to dim down the power step by step 100%-80%-60%-40%-20%.

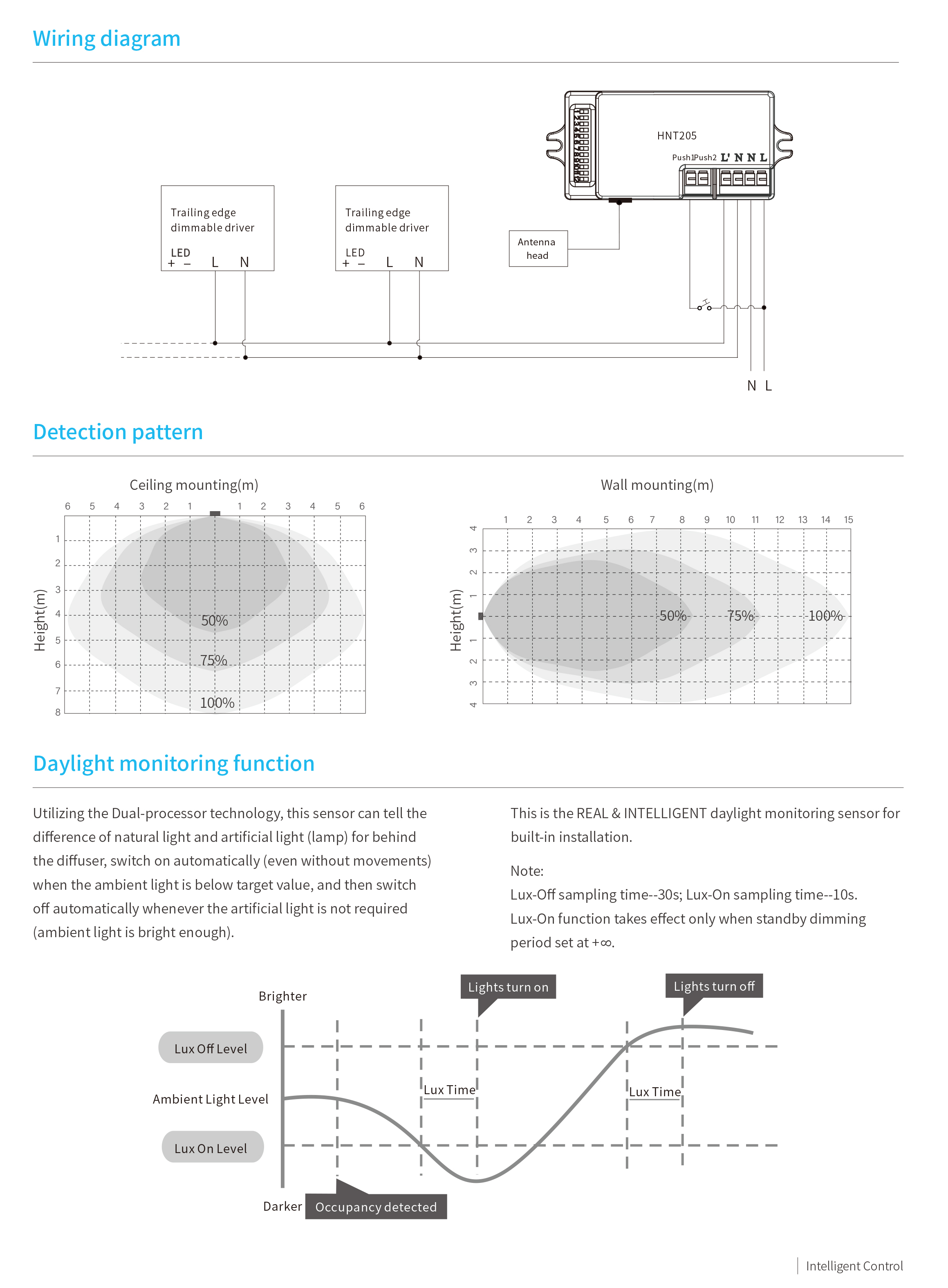

Ambient learn

Press “Ambient learn” button, the latest surrounding lux value overwrites previous lux value learned, and set as
the daylight threshold. This feature enables the fixture to function well in any real application circumstance.
